1998 Jaguar XJR Cooling Fan Conversion

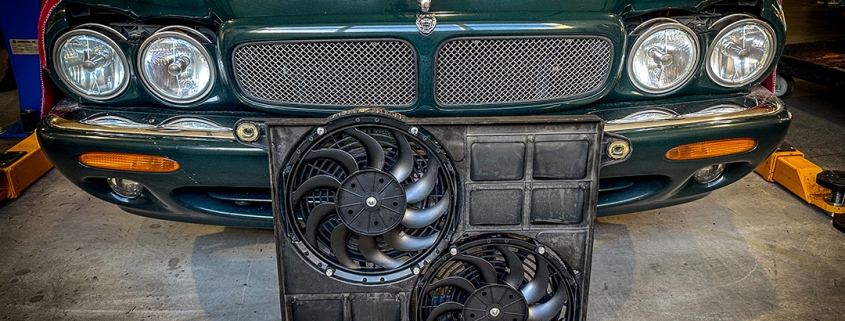

The other day we started on a 3d printing project for a customer’s 1998 Jaguar XJR Cooling Fan Conversion. One of the customer’s radiator cooling fans stopped working and the engine started to overheat. The fan assembly from Jaguar were quoted between $1100 and $1400 (for 2 fans and the shroud) We told the customer that there was a second option. The other option was to convert the fans over to brushless slimline style cooling fans.

The Process

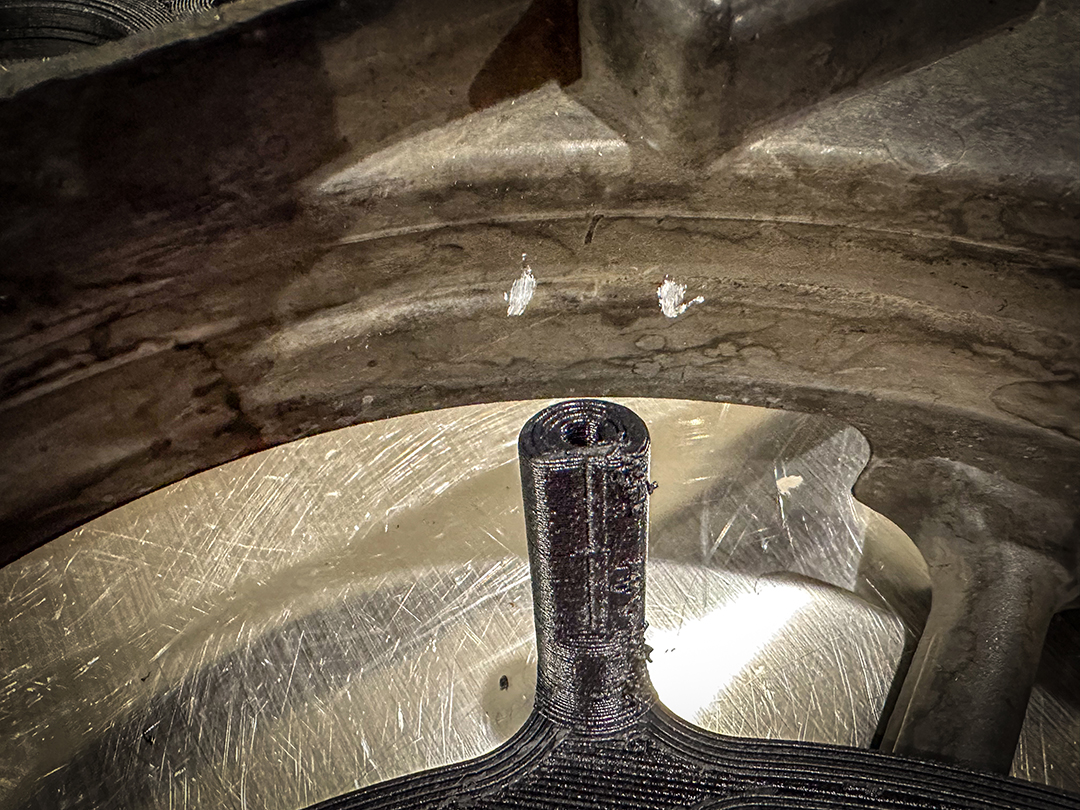

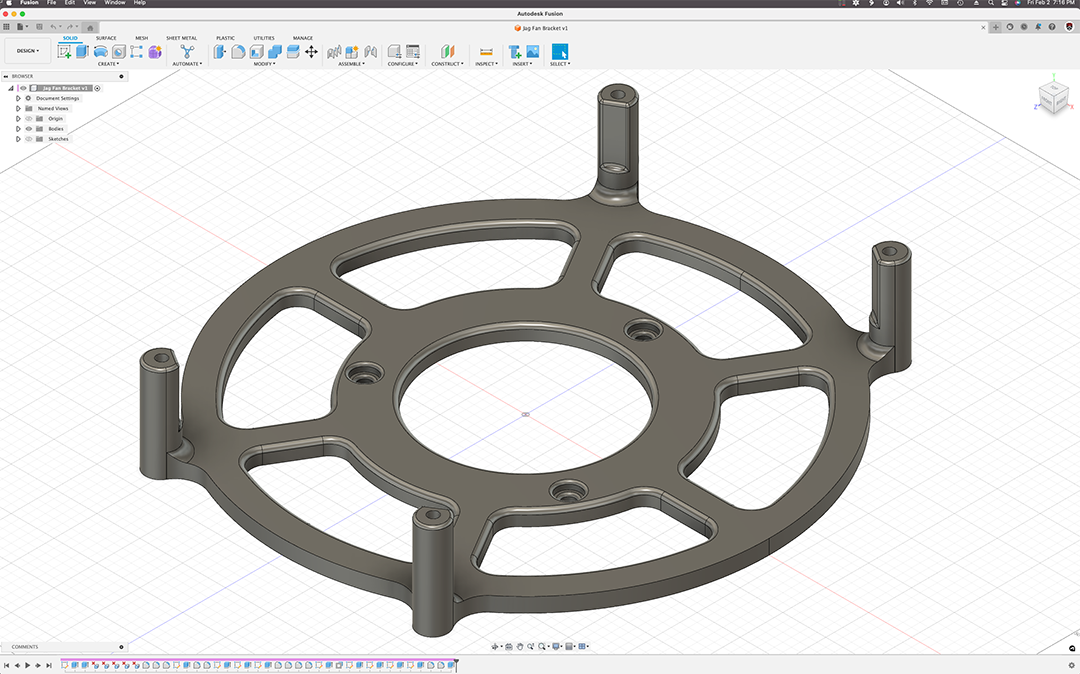

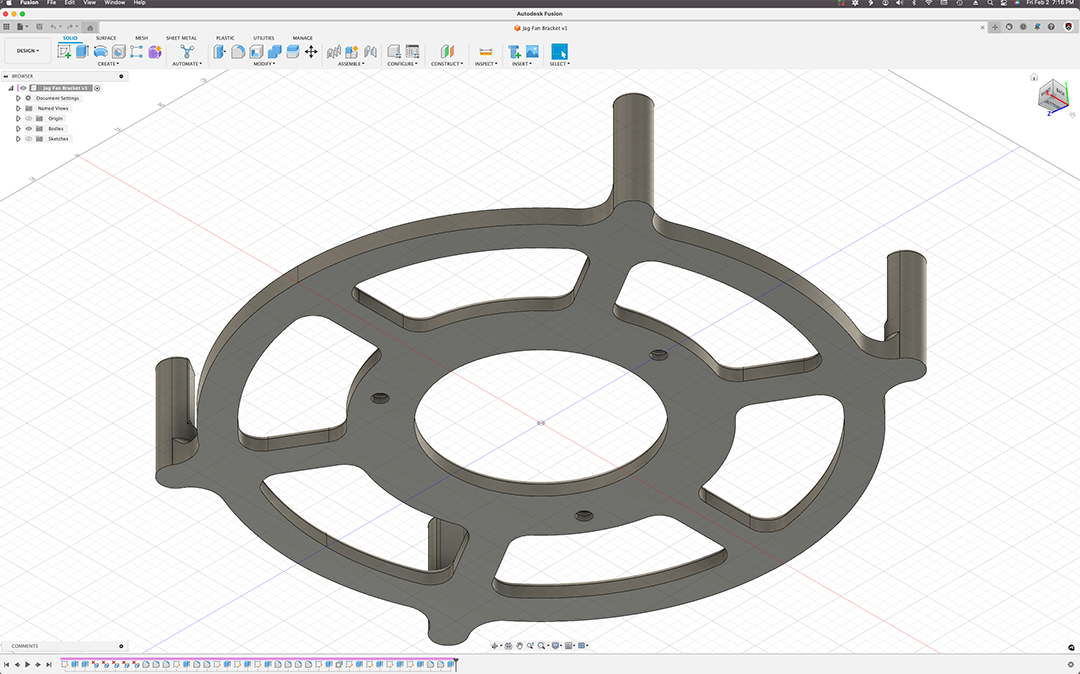

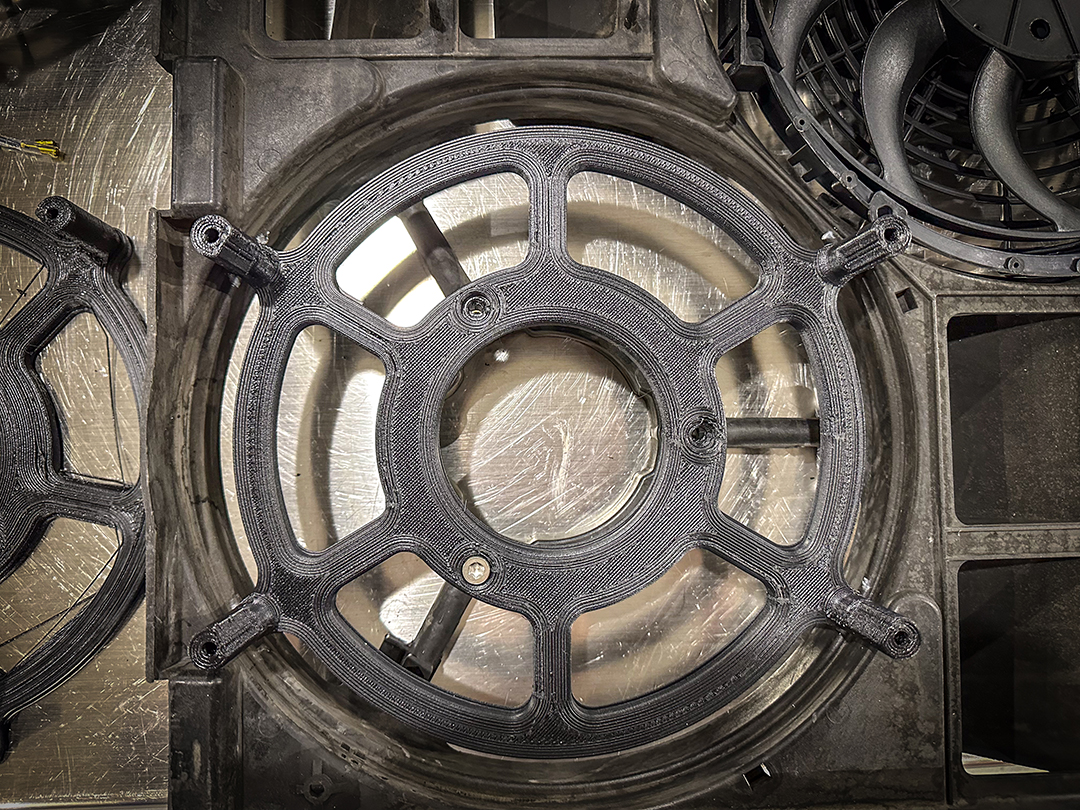

I took about 20 measurements and traced the mounting holes. Then I scanned the tracings on my flatbed scanner. After that, I digitized the files and imported them into Fusion 360. After a few hours, the CAD files were done and it was ready to print. I stayed up until about 3am, making sure the first bracket was printing ok. It wasn’t. Some of the settings needed tweaked. I changed the settings and hit print again, praying that when I woke up the print would be good.

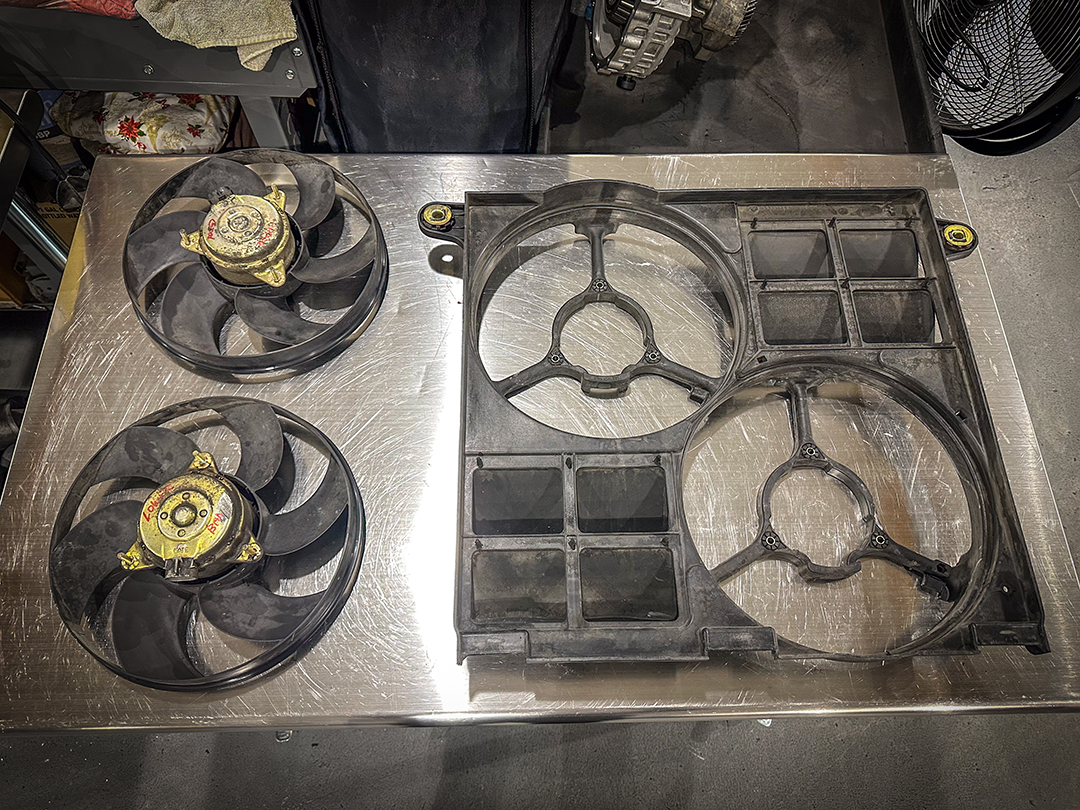

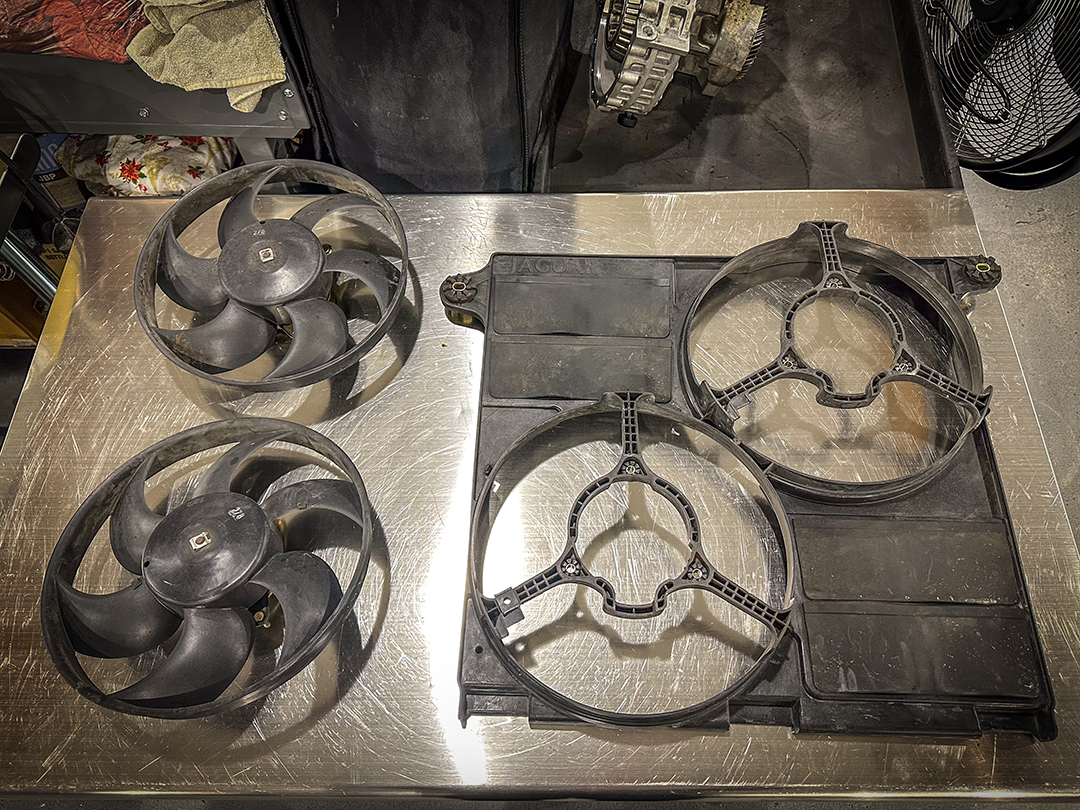

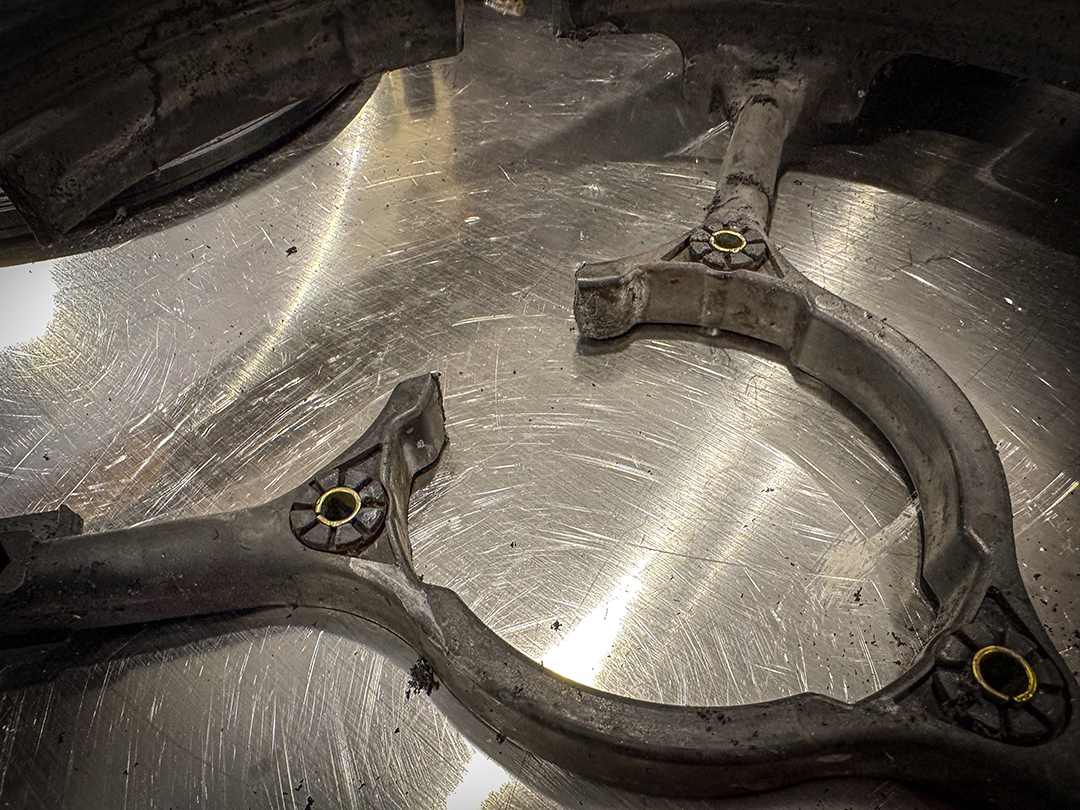

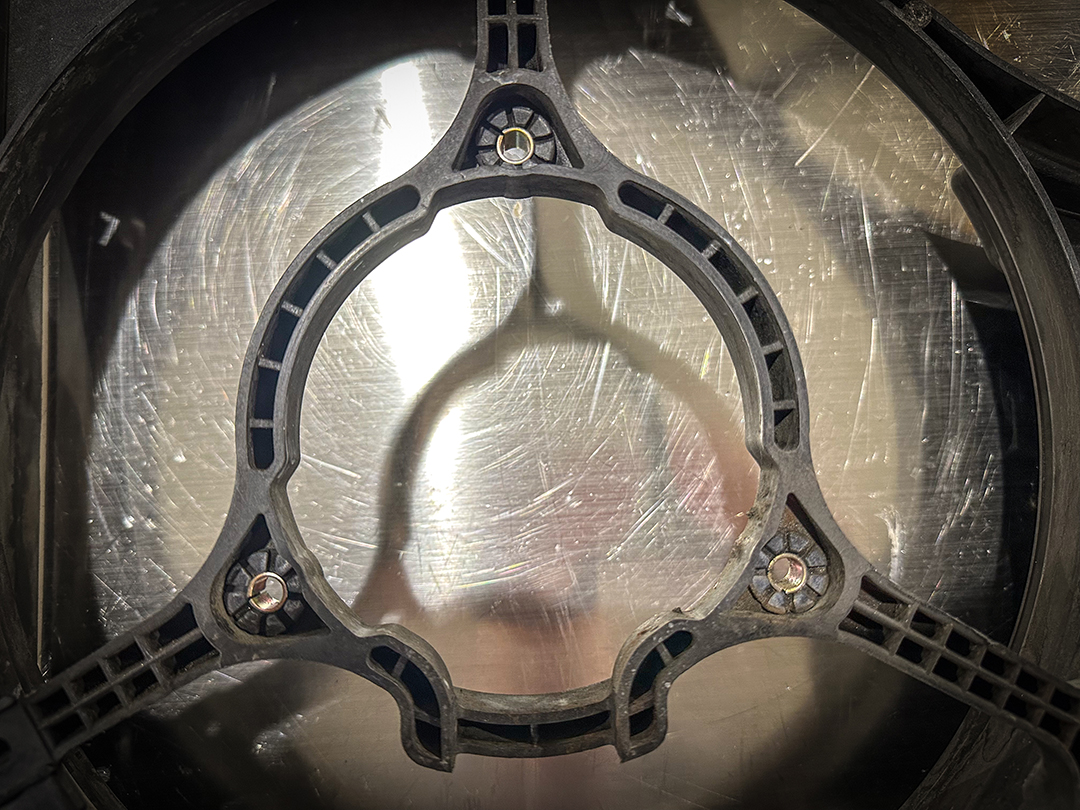

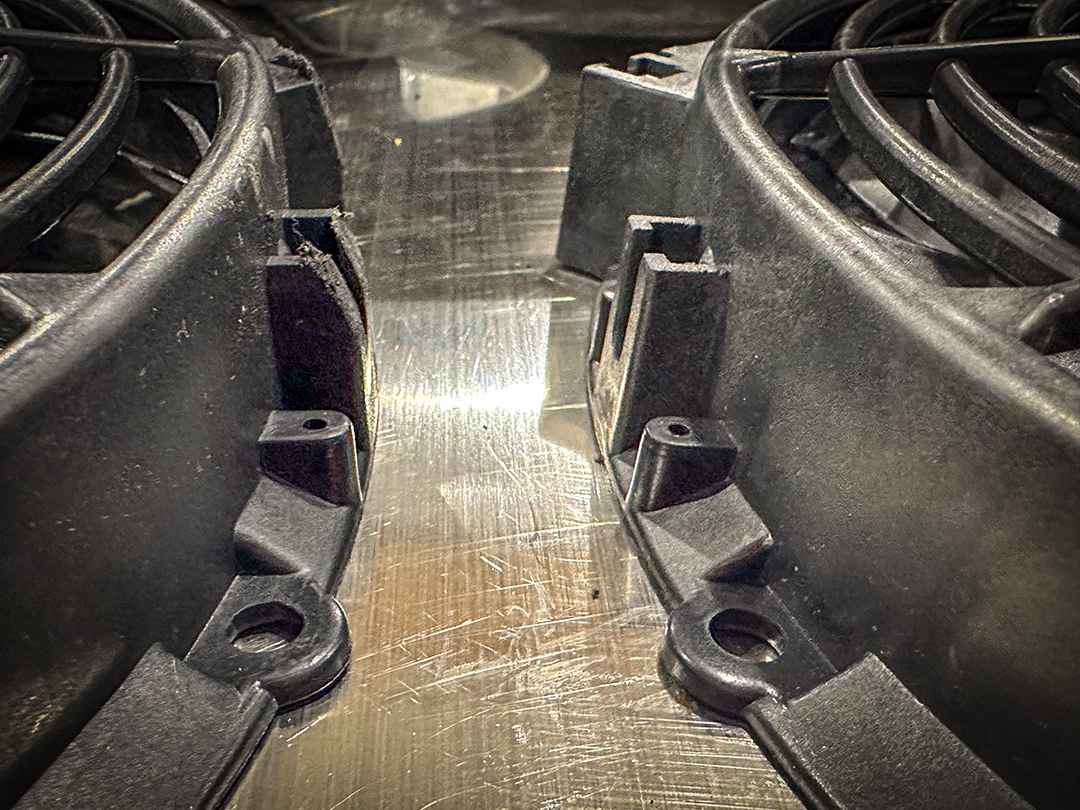

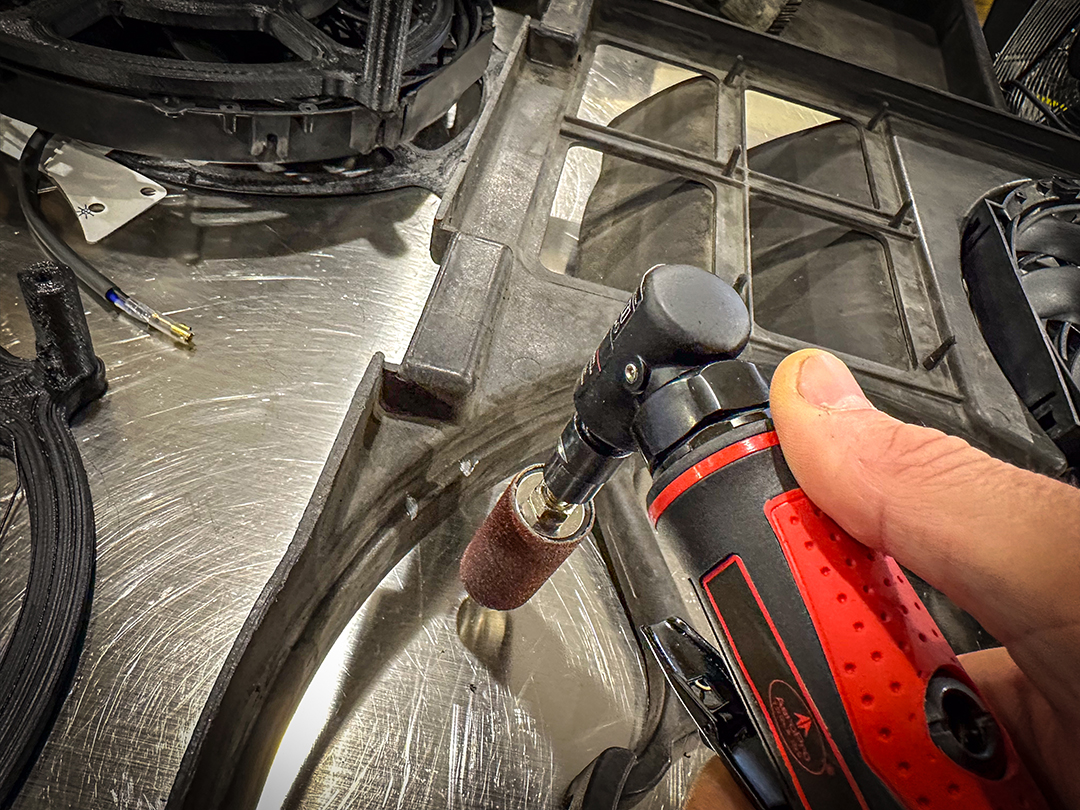

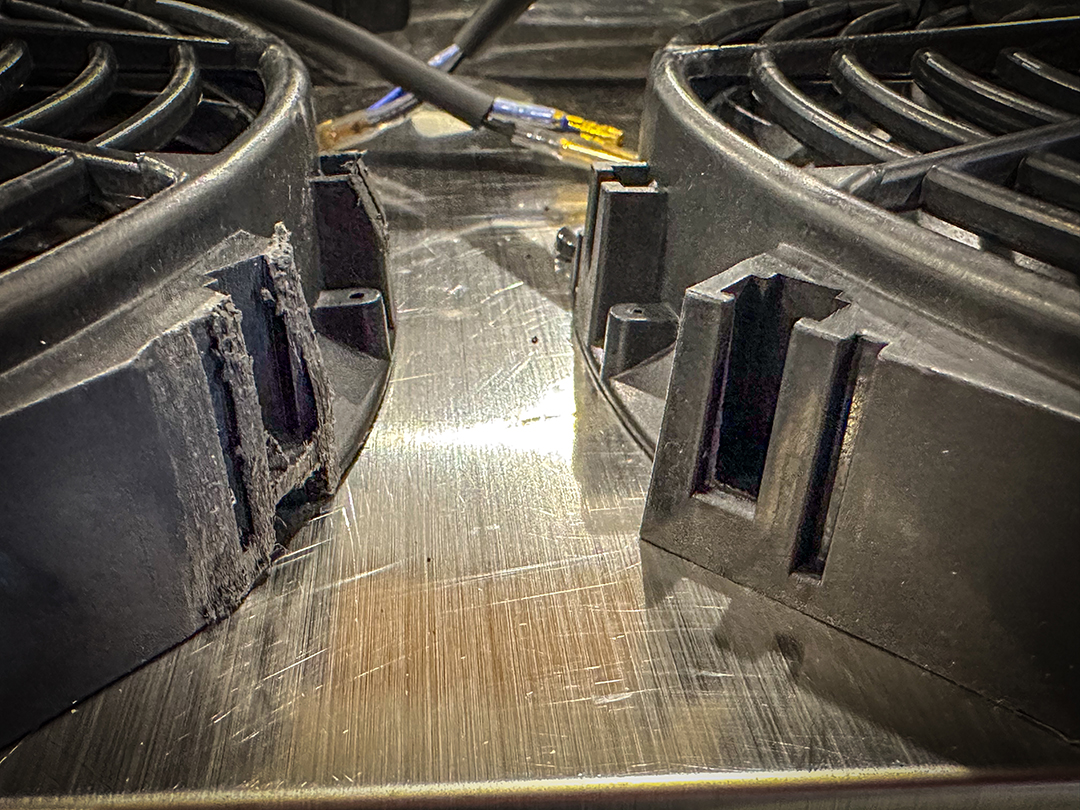

When I woke up 3 hours later the print was almost done and looked really nice. When that was done I removed it from the build plate. Then, I hit print again. I went into the shop to start modifying the shroud.

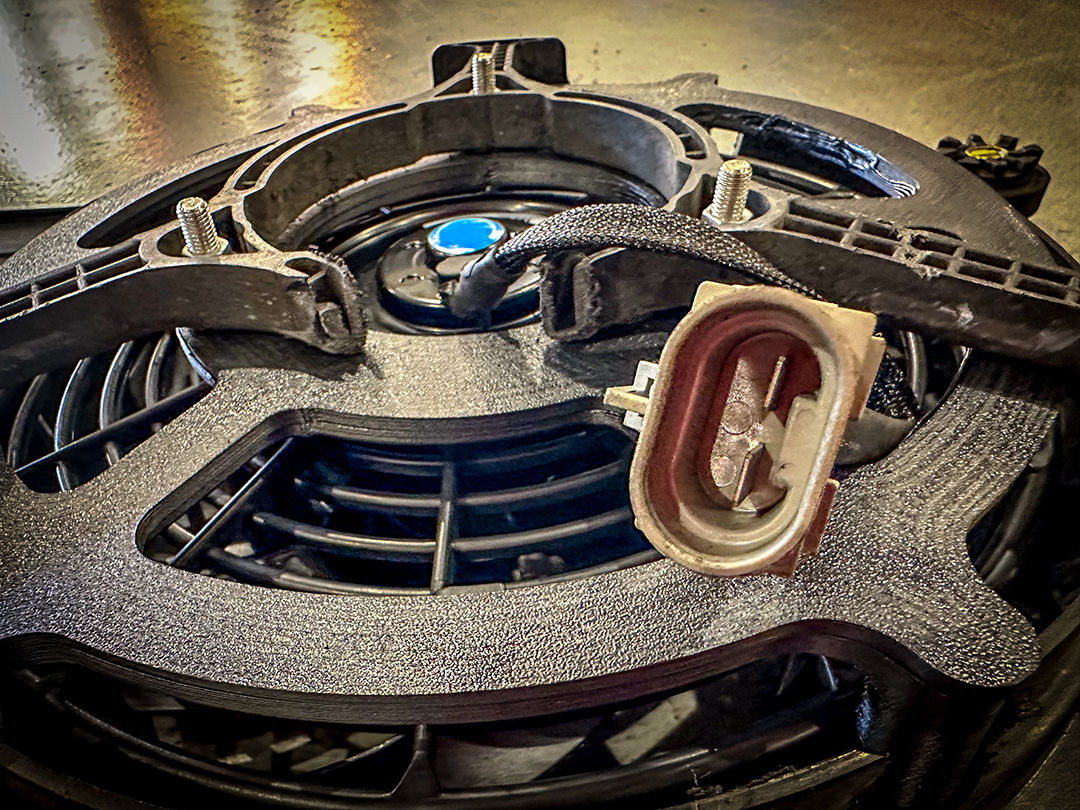

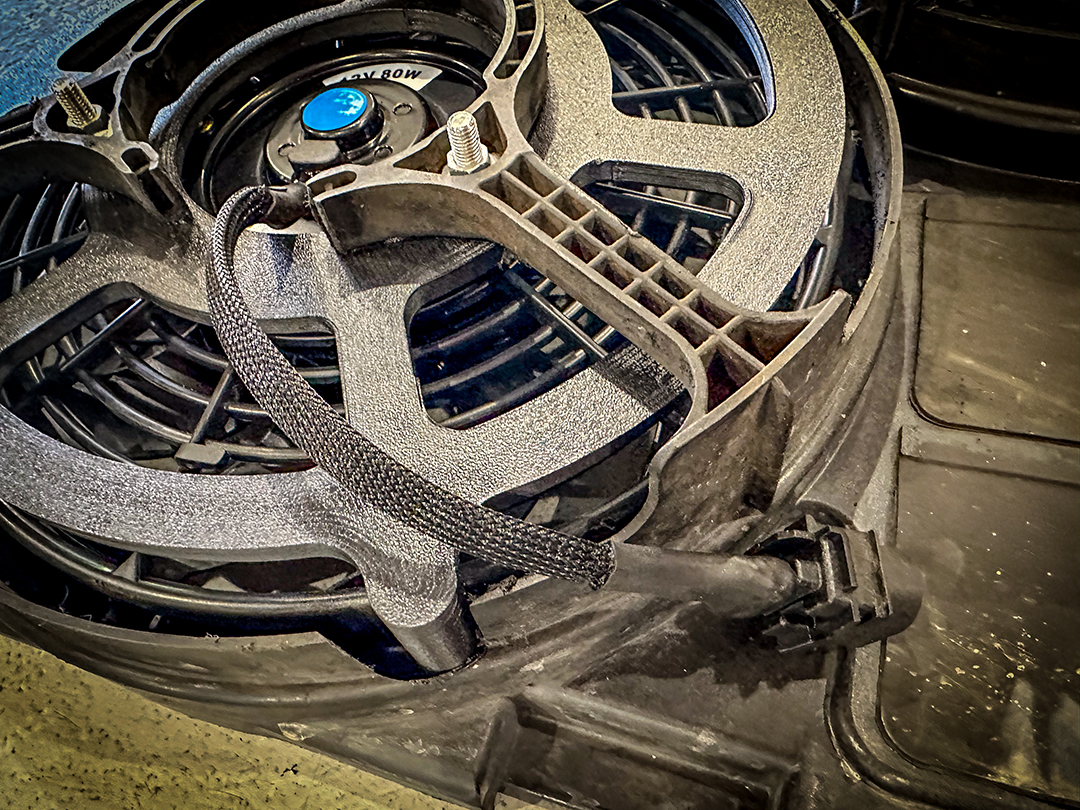

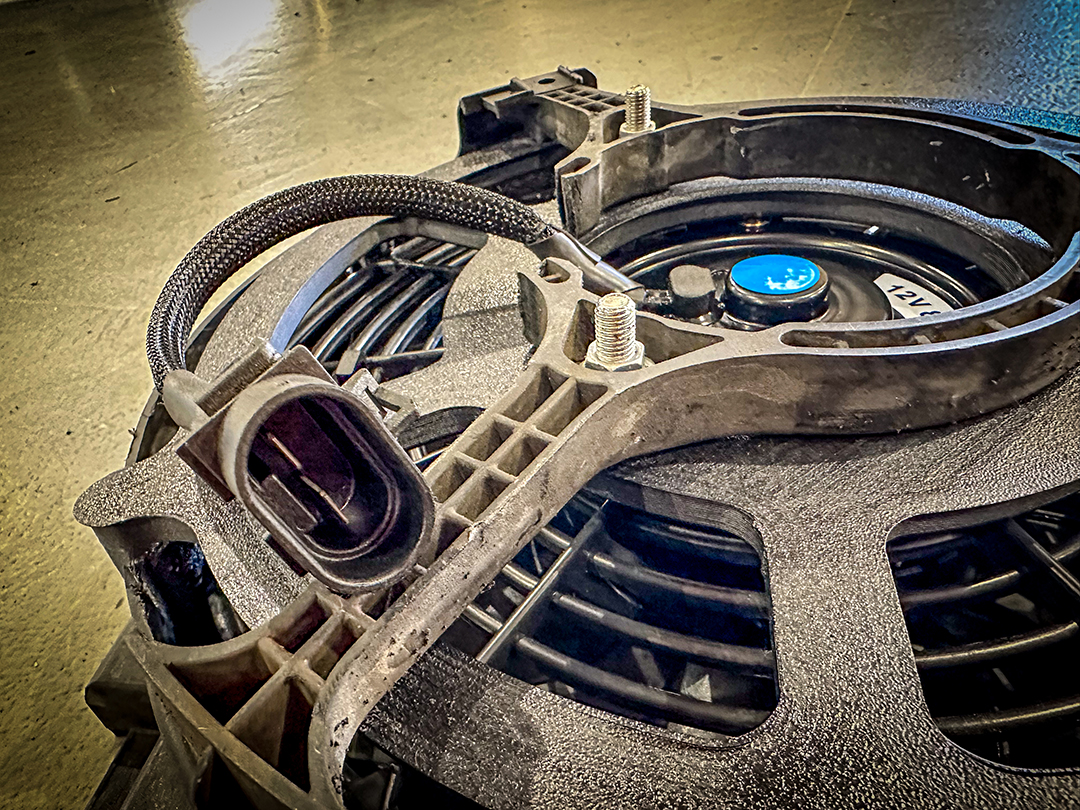

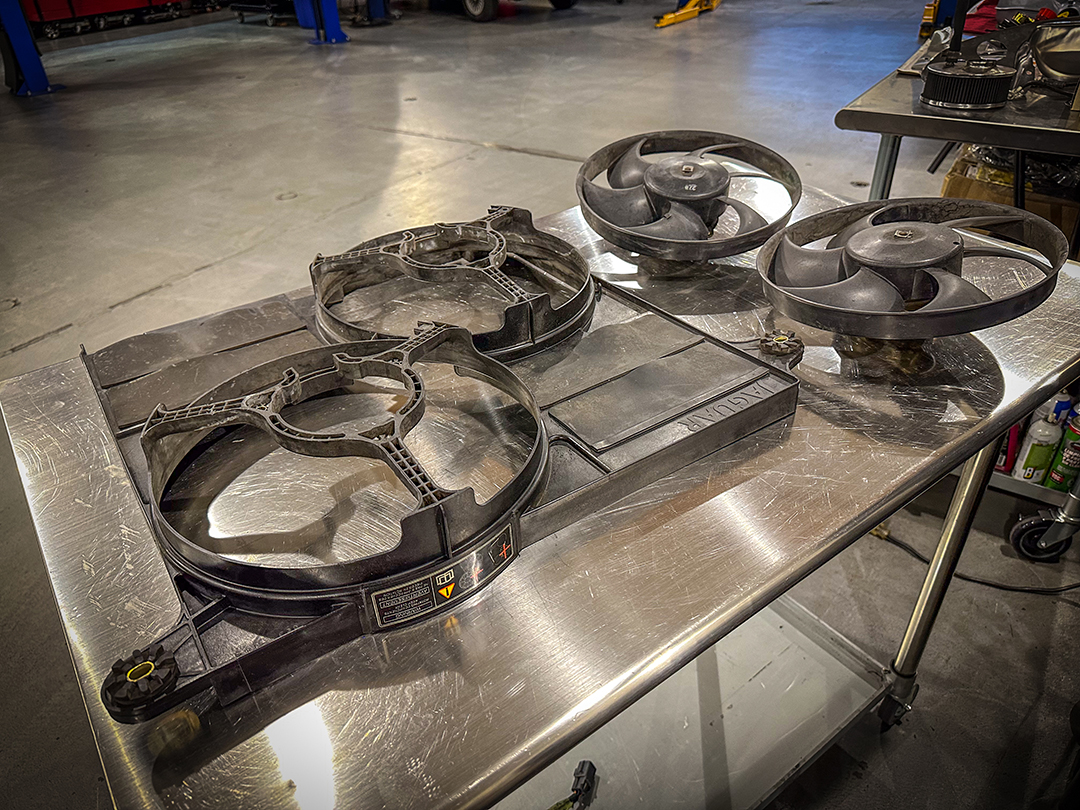

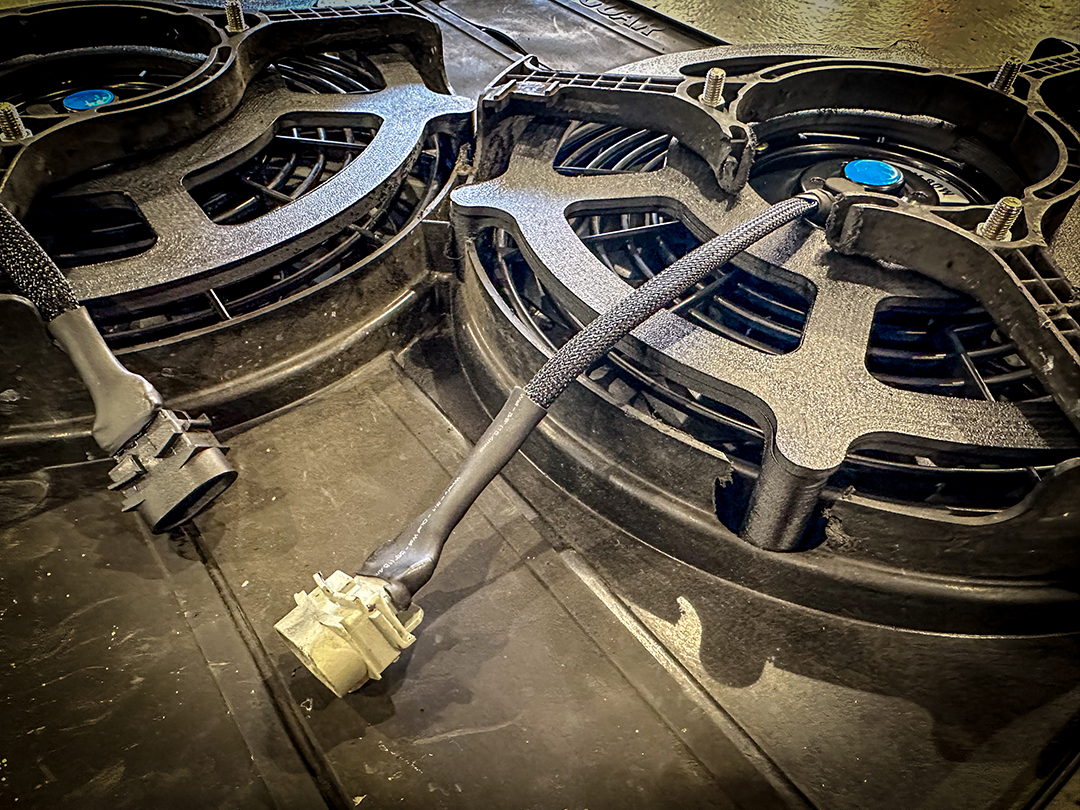

One of my techs ended up taking the motor apart and we extracted the OEM harness connectors. I wired and loomed that electrical connector to the fan harness. Furthermore, this made for a really nice, cohesive OEM looking connection.


This bracket will fit the following Jaguars:

  • Vanden Plas – 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, & 2003
  • XJ6 – 1993, 1994, 1995, 1996, & 1997
  • XJ8 – 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, & 2003
  • XJR – 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, & 2003

How was it made?

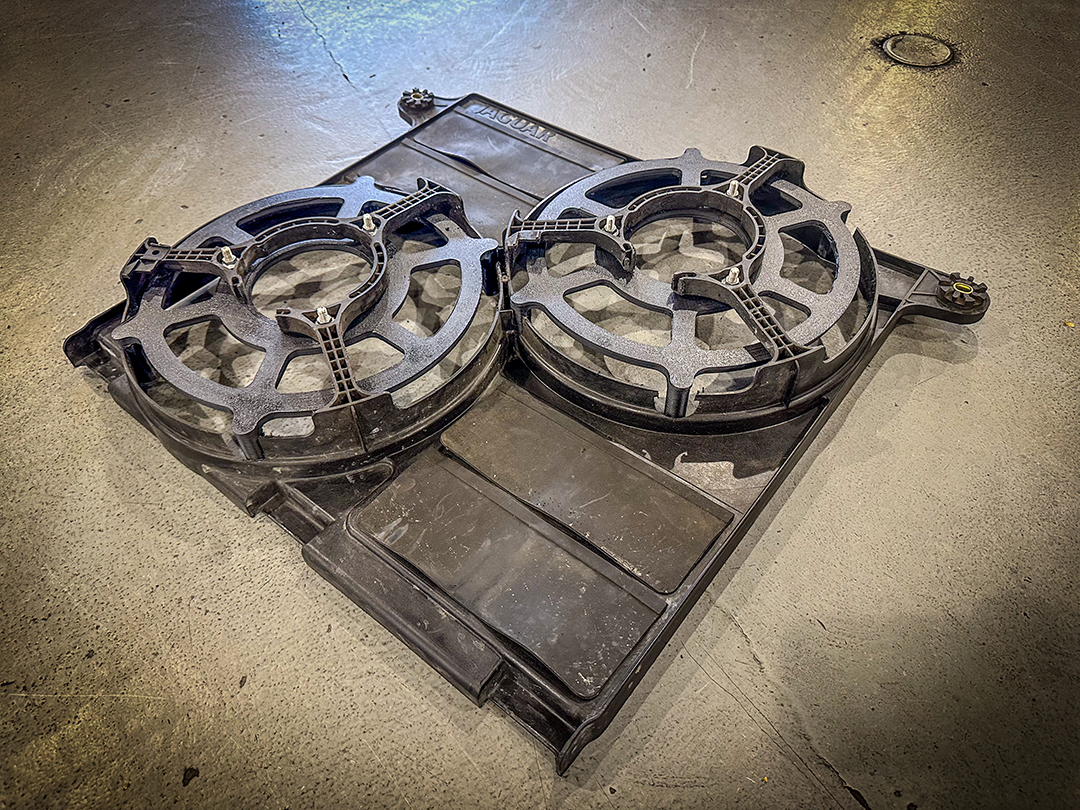

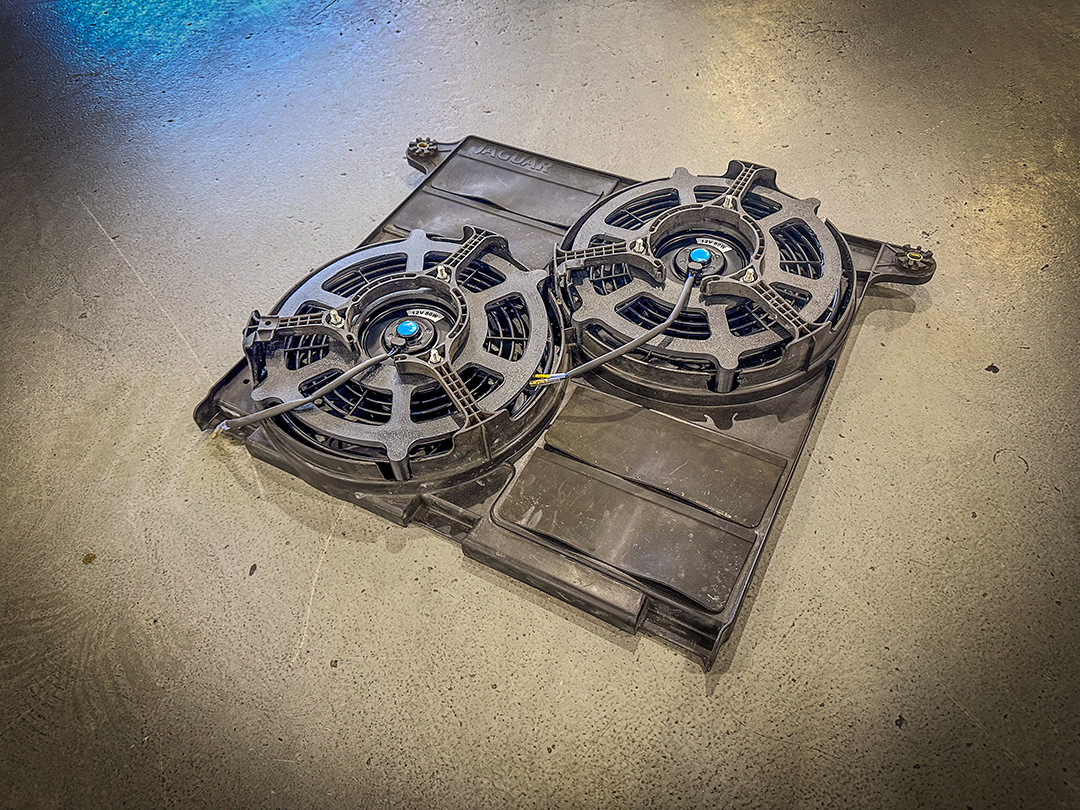

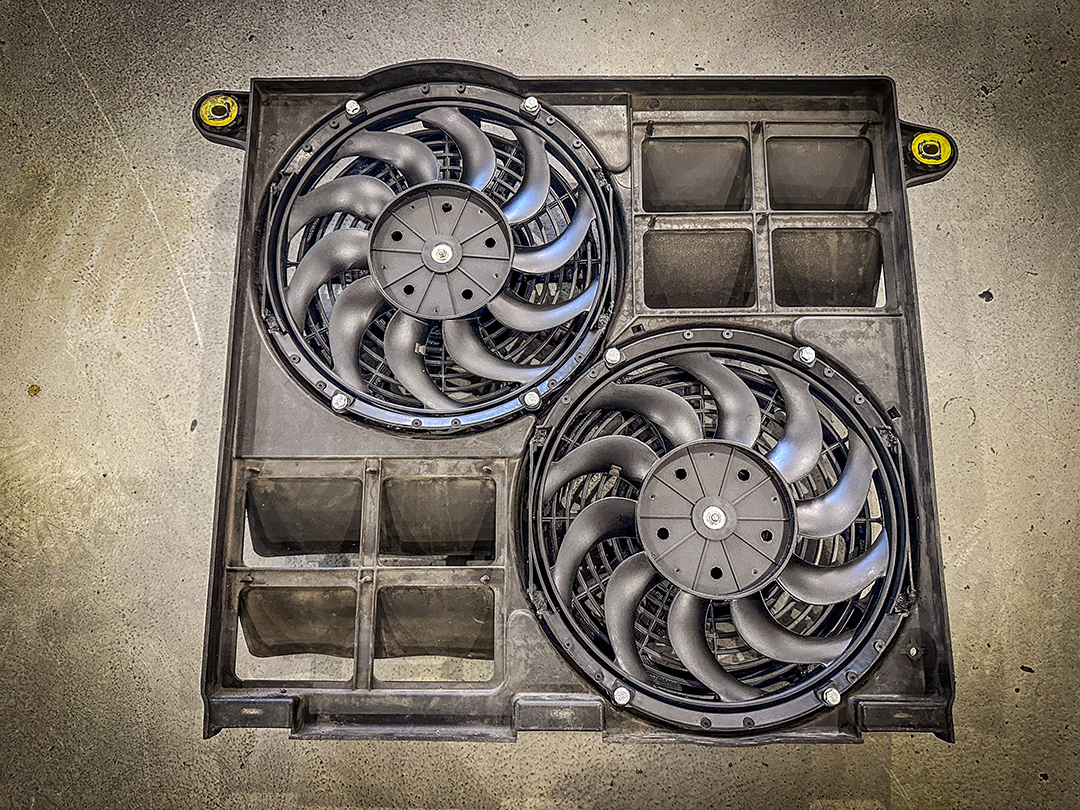

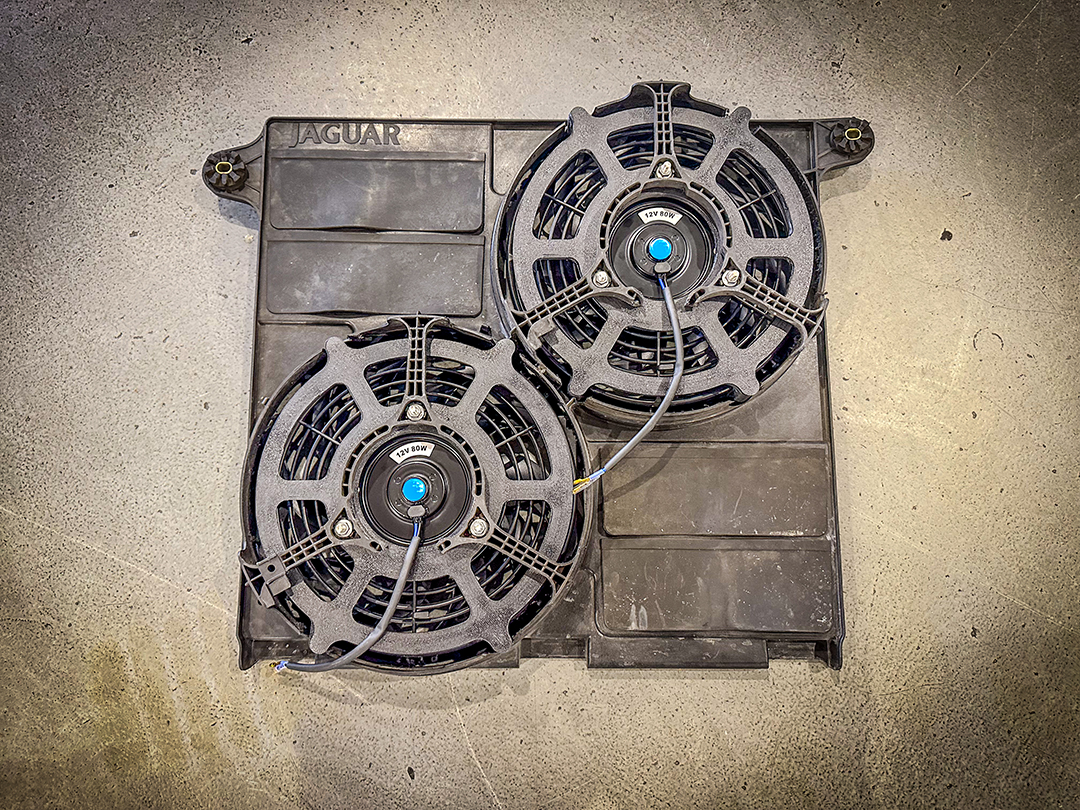

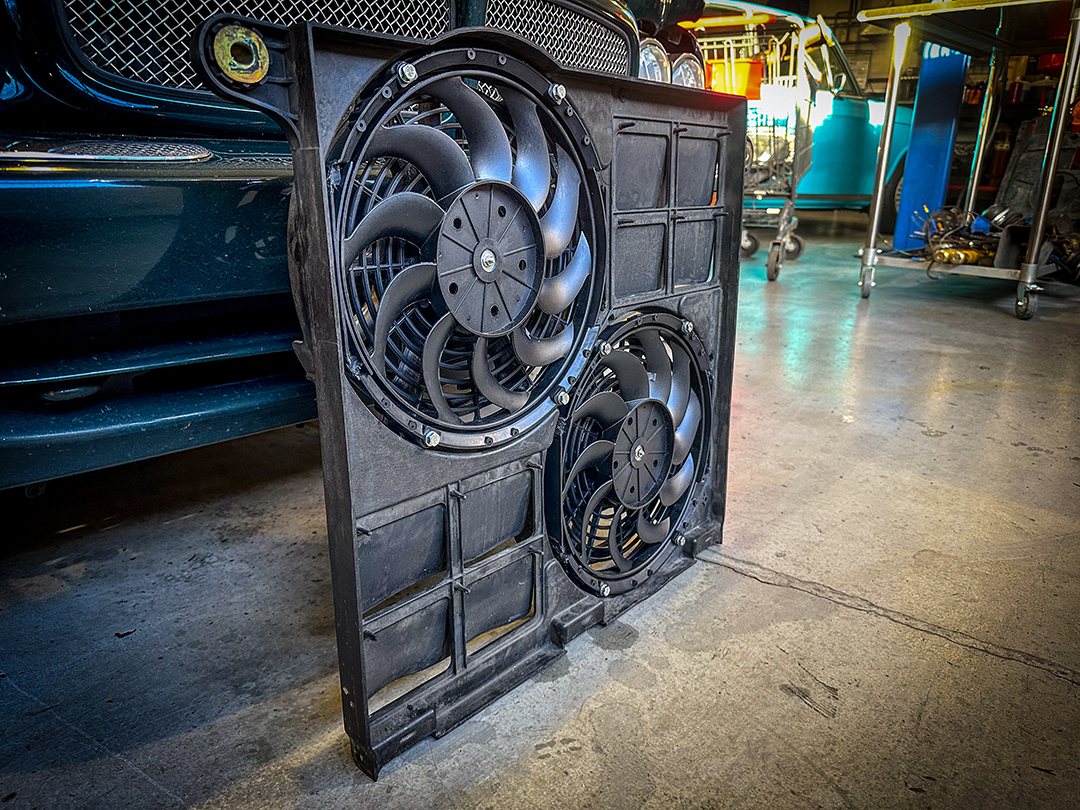

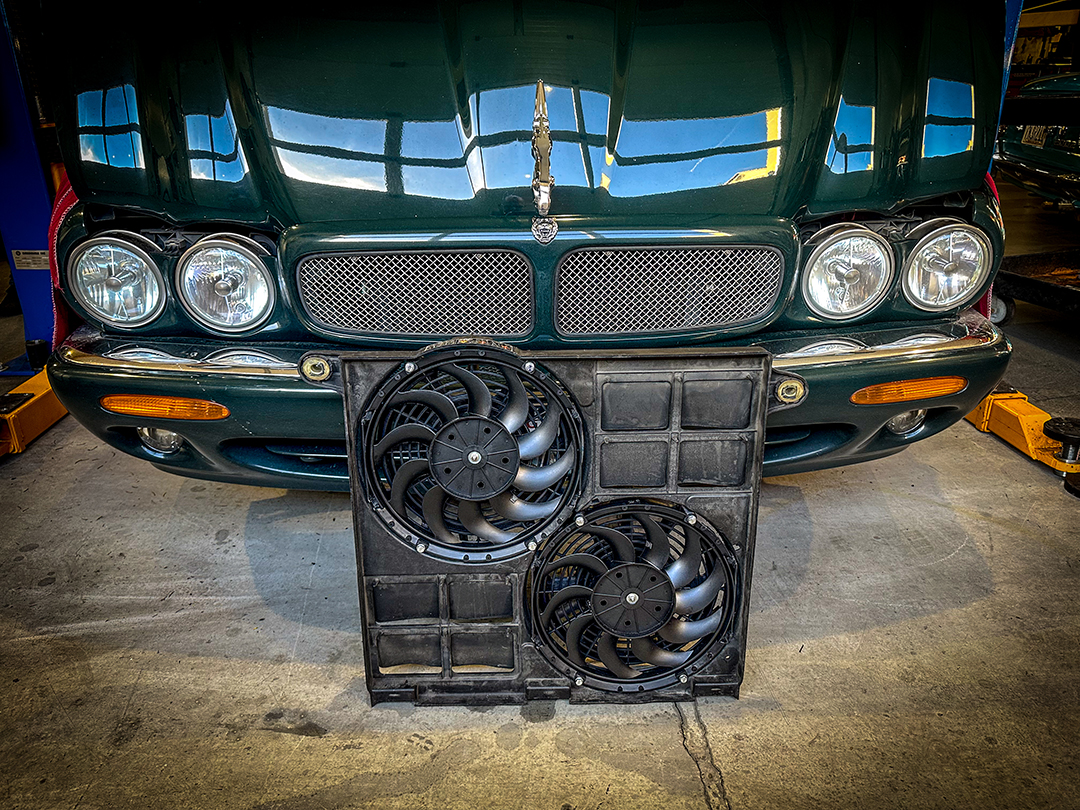

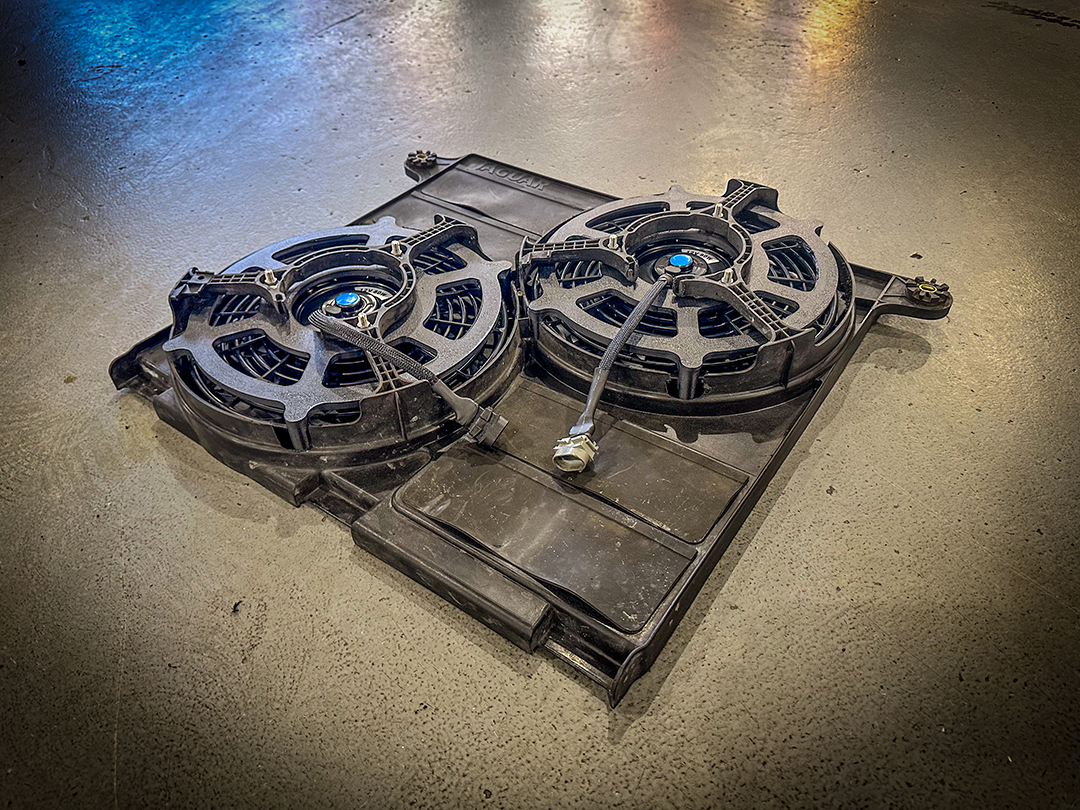

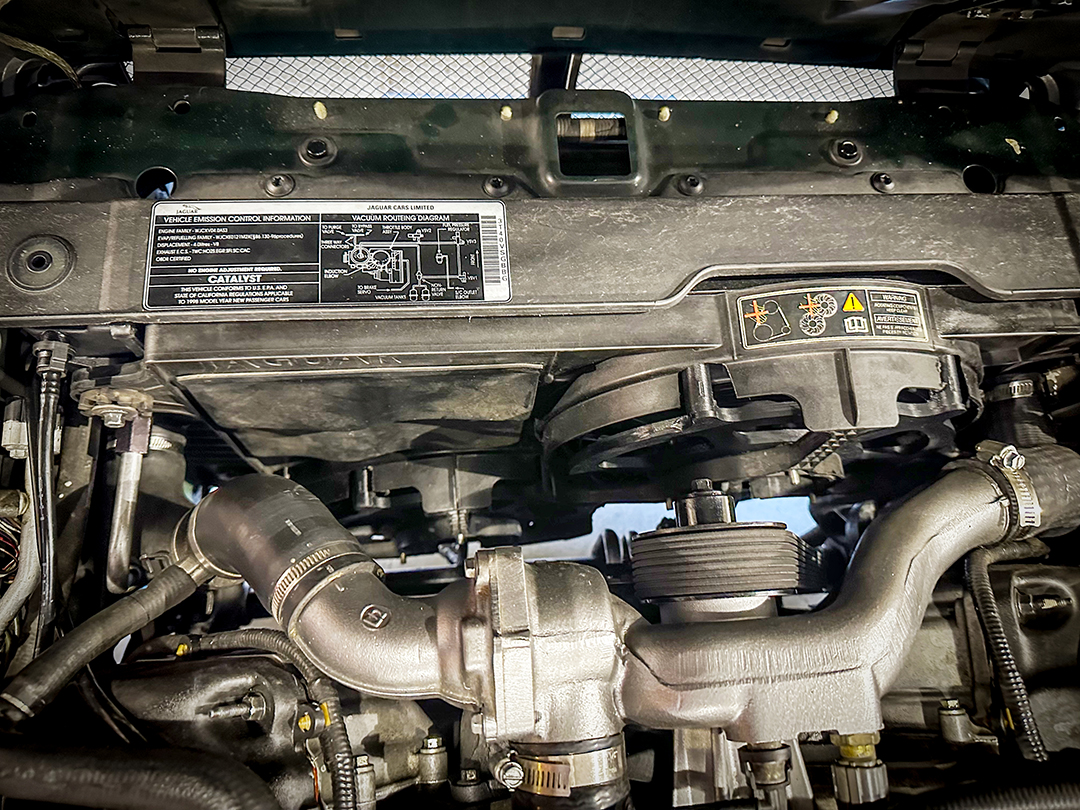

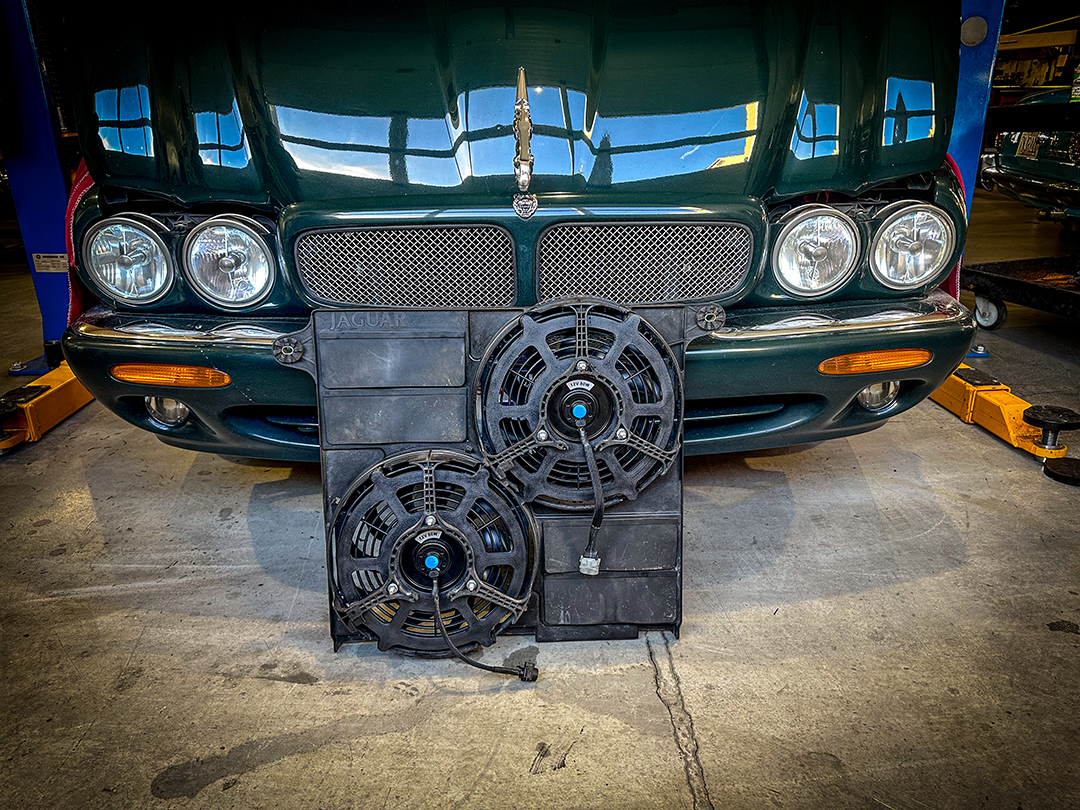

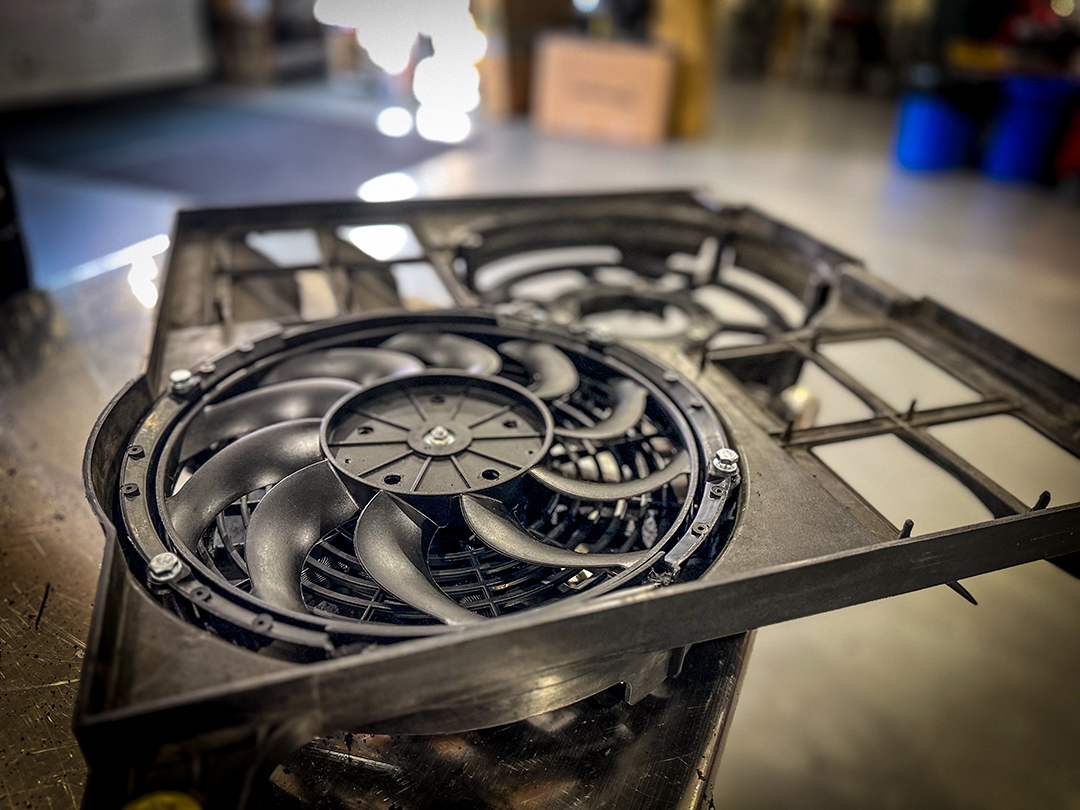

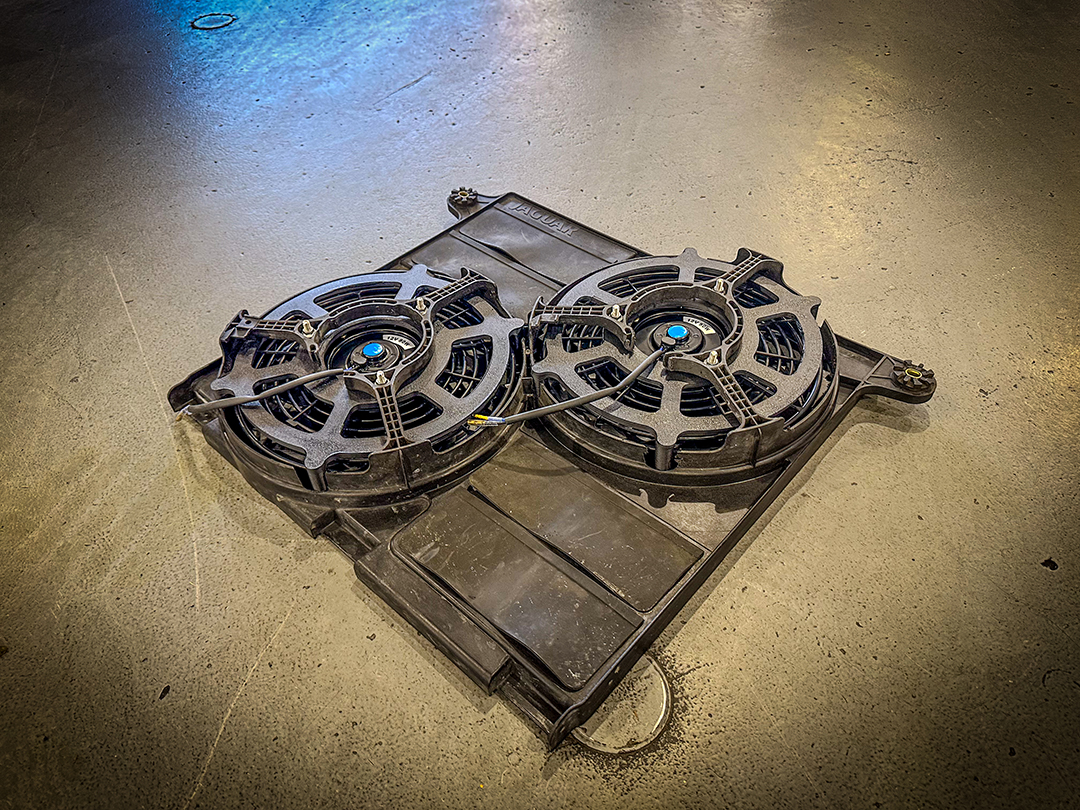

The XJR Cooling Fan Conversion is printed on a highly modified AnyCubic Kobra Max 3d printer with Priline Polycarbonate CF. For example, here are the A-Z photos of how it was done, and how it all turned out.


Question / Contact Meister Werks

For more information on how to get your XJR Cooling Fan Conversion installed, please call 425-254-0627. You can also contact us by clicking here. Meister Werks European & Import is located one block south from The Renton Landing in Renton, WA, across the street from the former Boeing Store and on the westside of the Paccar / Kenworth plant.
