Porsche PDK & Audi S-Tronic Fluid Services

, , , ,

Demystifying the DL501
Your Guide to Porsche PDK Service

Are you confused by Porsche PDK fluids for your 0B5, 9A7, or 0FD transmissions? You aren’t alone. While they sound different, they all point to the same powerhouse: the DL501 7-speed dual-clutch transmission. Audi owners know it as the S-Tronic, while Porsche Macan owners call it the PDK. Regardless of the name on the badge, keeping this transmission healthy requires precision. If you want to avoid a five-figure repair bill, a regular Porsche PDK service or Audi DSG flush is mandatory.

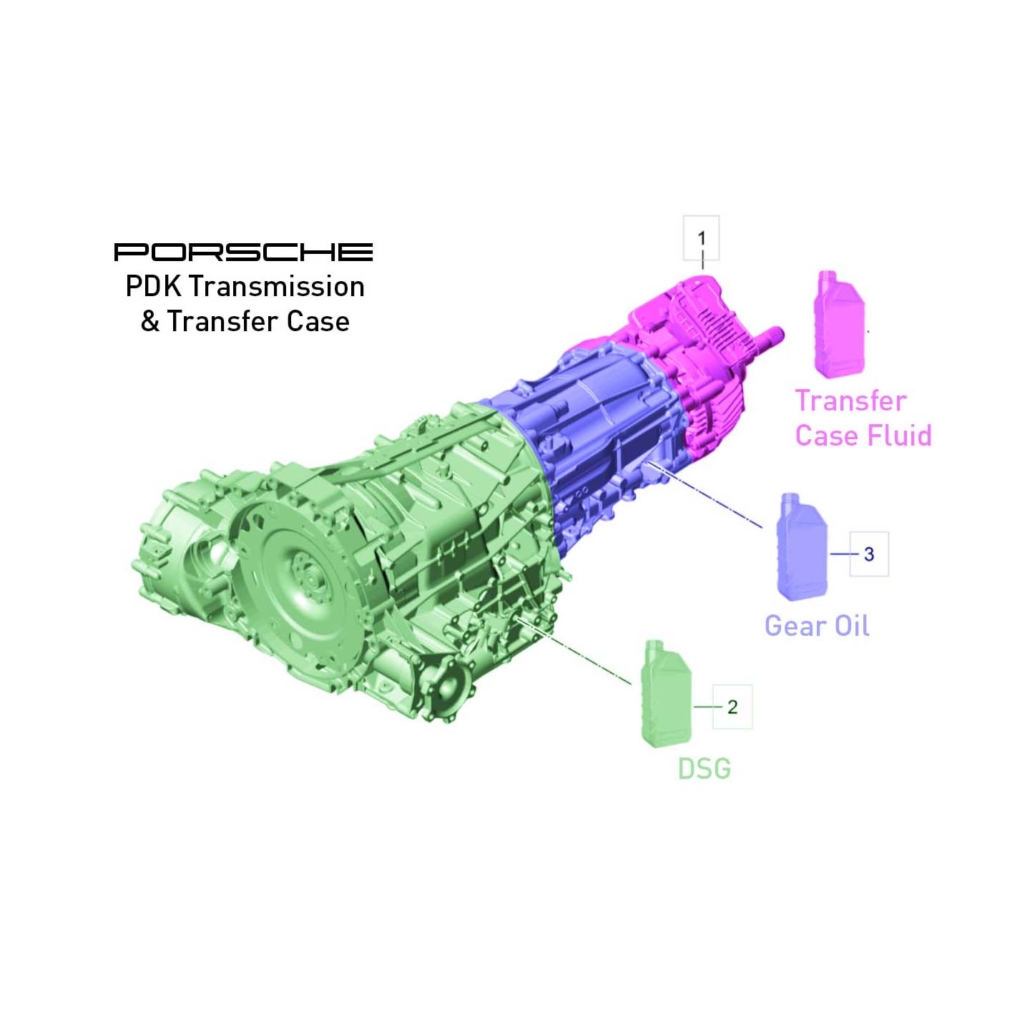

Porsche PDK – One Transmission, Three Fluid Chambers

The DL501 is unique because it uses two separate oil circuits. You must service both to ensure longevity:
  1. The Dual-Clutch Side (Mechatronic): This side handles the hydraulic gear shifts and cools the wet clutch packs. It requires a highly specific Dual Clutch Transmission (DCT) fluid.
  2. The Gearbox Side (Mechanical): This side lubricates the actual gears and differentials. It uses a traditional high-quality gear oil.
  3. The Transfer Case Side: At the end of this transmission is a separate unit from the 0FD/9A7 transmission that requires frequent fluid changes with Shell TF-0870 (OIL005) to prevent the common “shuddering” sensation caused by moisture and clutch wear.

The Best Fluids for Your Service

Choosing the right oil is the most critical step. Here is how the top brands stack up for the DL501 architecture:
  • Liqui Moly Dual Clutch Gear Oil 8100: This is the “gold standard” for the mechatronic/clutch side. Liqui Moly formulated the 8100 specifically to meet the VW TL 52 182 specification. It provides the exact friction coefficients needed for smooth shifts and clutch engagement.
  • Red Line MT-LV: This 70W/75W GL-4 gear oil is a perfect match for the mechanical gear side of the 0B5/9A7. Its low-viscosity formula improves cold-weather shifting and reduces internal drag.
  • Red Line MTL 75W80: While famous in manual transmissions, some enthusiasts use MTL in the mechanical side of the DL501 for high-heat or track applications. However, always verify your specific year’s viscosity requirements, as MT-LV is usually the preferred modern choice for these DCTs.
  • Shell OIL005 GL-4 S-Tec Transfer Case Fluid: SAE 75W transfer case fluid (also known as Shell TF-0870 or BMW DTF 1) designed for the all-wheel drive (AWD) transfer cases in vehicles from BMW, Porsche Macan, and certain Audis



PDK Transmission Fluids



Why Maintenance Matters

The mechatronic unit inside the 0B5 and 0FD is sensitive to heat and debris. Over time, the internal filters clog, and the fluid breaks down. Most experts recommend a Porsche PDK service every 50,000 miles to keep the solenoids firing perfectly. By using premium fluids like Liqui Moly 8100 and Red Line, you protect your investment and ensure your Audi or Porsche shifts like new. Pro Tip: Always ask to replace the external cartridge filter and the internal pan filter during a full service.

1. Preventing Mechatronic “Brain” Failure

The mechatronic unit is the “brain” of the transmission. It lives submerged in the hydraulic fluid. Over time, tiny metallic shavings from the clutches circulate through the oil. These particles can clog the solenoids or short-circuit the internal wiring harness. If the fluid stays clean, the electronics stay cool and functional.

2. Protecting the Dual-Clutch Packs

Unlike a traditional automatic, this unit uses two “wet” clutch packs. As they engage and disengage, they create friction and heat. High-quality fluid like Liqui Moly 8100 carries this heat away from the clutch discs. Old, degraded fluid loses its ability to cool, leading to clutch slippage and eventual total failure.

3. Managing the Two-Chamber System

A unique risk of the 0B5/9A7 is “cross-contamination.” The transmission features a special seal that separates the hydraulic fluid from the heavy gear oil. If the fluid is never changed, pressure can build up or seals can dry out, causing the oils to mix. This destroys the mechatronic unit instantly.

4. Cost Savings: $800 vs. $12,000

A comprehensive service and a new filter kit is an investment. However, ignoring it leads to the “Three Amigos” of transmission death: jerky low-speed shifting, “Gearbox Malfunction” warnings, and eventually, a total transmission replacement. A new unit from the dealer can easily exceed $12,000, making a few hundred dollars in fluid changes a bargain.

The Bottom Line

Fresh fluid ensures that the clutch adaptations remain within factory specs. This keeps the gear changes “crisp” and “lightning-fast,” which is exactly why your customers bought an Audi or Porsche in the first place.
